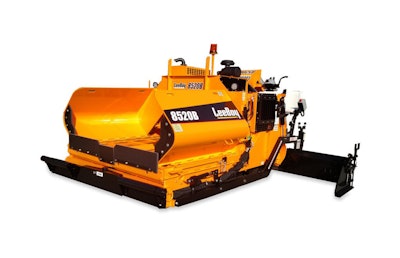

8520B Asphalt Pavers
Designed with the paving professional in mind, this heavy-commercial paver is guaranteed to impress. The 8520B incorporates enhanced features including an above deck generator, increased fuel capacity, and front adjustable conveyor chains that eliminate the need to lift conveyors to fine-tune tension. And as always, LeeBoy's ultra-efficient material management system with a wide, slow-moving conveyor system moves material consistently from the truck to the screed which ensures a flawless mat.
Technical Specifications
Operator's Controls
High deck/low deck configurationIncludes dual electronic steerAll control switches are located in one box that can be slid to each side. Dash panel includes augers, screed extension, cut-offs, screed, hopper wings, conveyors, grade controls, steering and lightsColor graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, voltmeter, water temp, tachometer, hydraulic oil temp, engine diagnostics
Dimensions
Length: 14' 5Width: 8' 6 transport10' hopper wings downHeight: 8' 2Total Weight (with screed): 19,760 lbs
Engine
Kubota turbocharged dieselTier 4 Final - 106 HP (79 kW) @ 2,200 rpm
Capacities
Fuel: 32 gallonsHydraulic: 25 gallonsWashdown tank: 7 gallonsDEF tank: 5 gallons
