8500D Asphalt Pavers
Boasting of a small footprint yet retaining a 15 foot-wide screed, the LeeBoy 8500D allows for wider and longer pulls than competitive pavers. This important detail, along with less hand work, means the end user minimizes the number of stops which increases productivity and profitability. The 8500D features traditional controls which lessens any learning curve and allows for immediate use. This paver is a true commercial class machine easily fitting onto a trailer with other complementary equipment in order to provide high revenue opportunities for its patrons.

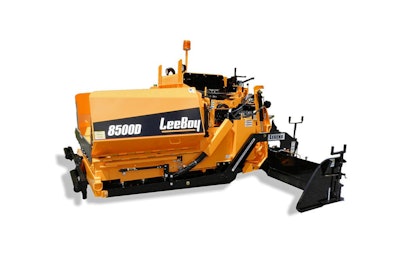

LeeBoy 8500D
Technical Specifications
Operator's Controls
All control levers are on the left sideRight side levers include left and right drive control, right auger, right screed extensions, hopper and cut-offsDash slides from left to rightColor graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, voltmeter, water temp, tachometer, hydraulic oil temp, engine diagnostics
Dimensions
Length: 12' 9Width: 8' 6 transport10' hopper wings downHeight: 7' 10Total Weight (with screed): 15,800 lbs
Engine
Kubota turbocharged dieselTier 4 Final - 64hp (48 kW) @ 2,400 RPM
Capacities
Fuel: 17 gallonsHydraulic Reservoir: 40 gallonsWashdown tank: 7 gallonsPaving WidthsVariable up to 15'
Product Specifications
LeeBoy 8500D Asphalt Paver
The following specifications are based on the 8500D Asphalt Paver manufactured by LeeBoy. Because of continuous equipment research and development, we reserve the right to change these specifications. For more information, questions or assistance preparing specifications, please contact your local LeeBoy Dealer.
1. Dimensions:
a. Length: 12' 9b. Width: 8' 6 transport10' hopper wings down c. Height: 7' 10d. Total Weight (with screed): 15,800 lbs.
2. Engine:
a. Kubota turbocharged dieselb. Tier 4 Final - 64hp (48 kW) @ 2,400 RPM
3. Capacities:
a. Fuel: 17 gallonsb. Hydraulic Reservoir: 40 gallonsc. Washdown tank: 7 gallons
4. Hopper:
a. Hopper size: 7.5 ton - high deckb. Hopper height: 22c. Hopper is hydraulically raiseable to allow for cleaning and service
5. Paving Widths:
a. Variable up to 15'
6. Paving Depths:
a. Manually operated tow point screws with optional toggle switches connected to a 6 electric screw to control depth to allow operation from either side of paverb. Includes manual flight screws positioned on the screedc. Depth: 0 to 6
7. Available Screeds:
a. Legend Propane Screed: Variable up to 15', weight 2,300 lbsView detailed Screed specificationsb. Legend Electric Screed: Variable up to 15', weight 2,390 lbsView detailed Screed specifications
8. Under Auger Material Cutoff:
a. Two independent hydraulically operated 4' wide gates located under the augers and constructed of at least .25 A-36 plate steel
9. Material Augers:
a. Two independent automatic or manual operated hydraulic cast segmented augers constructed with .625 AR 4140 HT (heat-treated) steel with replaceable flightsb. Augers are 9 diameterc. Controlled automatically with sonic units (non-contacting) - optional
10. Conveyors:
a. Dual 36 feeding conveyorsb. Each conveyor is independent with automatic cut-offs
11. Operator's Platform (Optional Low Deck):
a. Seat mounted on the screedb. Can be moved from left or right or removed for standing
12. Operator's Platform (Optional High Deck):
a. Full machine width platform with both right and left hand seatsb. 4' 6 above groundc. Includes a lockable cover for the instrument panel
13. Operator's Controls:
a. All control levers are on the left sideb. Right side levers include left and right drive control, right auger, right screed extensions, hopper and cut-offsc. Dash slides from left to rightd. Color graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, voltmeter, water temp, tachometer, hydraulic oil temp, engine diagnostics
14. Steering:
a. Independent hydrostatic steering from the left or right side of machine
15. Washdown System:
a. Electric HD pump with one 15' x .3125 diameter hose and two hose wraps
16. Hydraulic System:
a. Variable volume hydraulic pumps for each driveb. A constant volume pump for conveyors and a constant volume pump for all other hydraulic functionsc. Hydraulic oil: all weather, all temperature
17. Push Rollers:
a. Two 3 diameter rollers with sealed bearings mounted on swivel frameb. Adjustable height push rollers with self-cleaning scrapers
18. Track Drive System:
a. Hydrostatically powered, self-cleaning crawler type tracks consisting of drive sprocket, four rollers and hydraulically adjustable front idlerb. Drive mechanism is torque hub driven which consist of two speeds and obtained by means of a toggle switchc. Fail-safe brakes with anti-creep functiond. Track size: 12 wide x 77 long steelOROptional: 14 wide x 77 long polye. Paving speed: 0 to 140' per minute (1.6 mph)f. Travel speed: 0 to 240' per minute (2.7 mph)
19. Additional Standard Equipment:
a. Back-up alarmb. LED beacon lightc. Vandalism protection coversd. Horne. Wired for sonic augers, sensors and cords
20. Optional Equipment:
a. 14 polyurethane pad trackb. High-deck configurationc. Truck hitchd. Truck hitch valvinge. Slope meterf. Second seat, low deck configuration onlyg. LED work light packageh. Sonic auger, sensors and cordsi. Electric screws for grade controls
