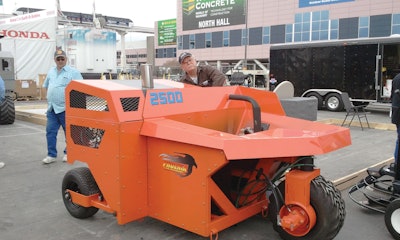

The Phoenix 2500 compact curber can create up to 18-in. curb and gutter, including below-grade pouring.
- Pouring speed of 50 to 60 fpm with a travel speed up to 200 fpm
- Measures 4 ft. tall, 5 ft. wide and 8 ft. long and weighs less than 2,000 lbs.
- Rotary actuator on front allows 180° turns for tighter pouring radius
- Expandable hopper with 3-in. Minnich hydraulic vibrator
- No extra chute needed to reach the Easy-Load Hopper
- ConTech custom automatic sensors or optional Height Sensor and Cross Slope Sensor
- Video: http://youtu.be/Jxw-s8gg-yQ
- Single-person, manual operation from two positions
- 25-hp Kohler electronic fueli njected V-Twin or optional Kohler 25.2-hp diesel engine
