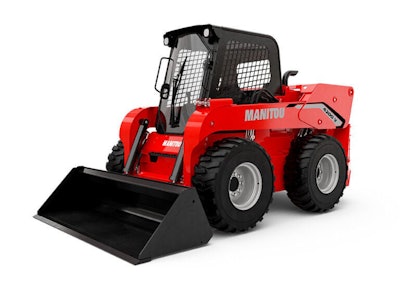

Optimize your handling work with the 4200 V full-sized skid loader. This heavy-duty loader can work on all types of soil in the most confined spaces and difficult to access areas. Easily make your excavating, grading and excavation under the ground level! Offering excellent reach the vertical-lift 4200 V skid loader provides high performance for loading trucks, filling or discharge over a wall. This unit was also designed with operator comfort in mind providing a spacious working environment for operators of all sizes, adjustable armrests, LCD display and a 360 degree panoramic view.
Skid Steer Loader
4200V
Height to Hinge Pin (mm): 143.6 (3647)Rated Operating Capacity (kg): 4,200 lbs. (1906)Gross Power (kW): 120 hp (89.6) @ 2200
Performance
The Mustang 4200V skid steer loader is a shining example of Mustang's superior innovation and well thought-out product development.4000V Dirt PerformanceHeight to Hinge Pin - Fully Raised (mm) 143.6 (3647)Travel Speed with Standard Two-Speed (km/hr)) 10.7 mph (17.3)
The re-designed chassis aids in superior weight distribution, which further enhances stability.Thick steel plating and heavy-duty pins and bushings strengthen the loader for heavy-duty work.Electronic engine control and electronic foot and electronic hand throttles allow operation at partial throttle, reducing sound levels and fuel consumption (not available with hand/foot controls).
Operator's Cab
The operator's compartment on the 4200V skid steer loader provides a safe and comfortable working environment for operators of all sizes.Cab forward design enhances the view to the bucket. Level II FOPS is standard equipment.Standard mechanical suspension seat and optional air-ride suspension seat provide enhanced levels of comfort.New side-folding restraint bar and armrests with multiple adjustments enhance operator safety and comfort.Extra-large side screens combined with a low-profile lift arm design provide a wide field-of-view to the side work areas.Optional pressurized sealed cab enclosure with sound reduction material and rear-mounted air filter provide a cleaner and quieter operating environment.Domed, wide-view glass door option reduces glare and provides optimal visibility to the lift arm, work tool and front work area. Large top, front window provides a clear view of the lift arm in its higher lift positions.Dome light, cup holder, 12-volt socket and storage tray.LCD display replaces gauges and is customizable to user preference.
Controls
Controls on the Mustang 4200V skid steer loader are ergonomically designed to reduce operator fatigue and increase productivity.Adjustable joystick handles provide ease of operator control with minimal effort, reducing fatigue.New upper-left and upper-right instrument panels provide easy readout and switch access.Pilot joystick controls or pilot hand/foot controls provide the ultimate in operator comfort, ease and controllability.Infinitely adjustable proportional auxiliary hydraulics.Hydraloc system applies brakes whenever the operator raises restraint bar, leaves the operator's seat or switches off the ignition.
Engine
The Mustang 4200V skid steer loader comes equipped with the power to tackle virtually any job.4000V EngineMake DeutzModel TCD 3.6 Tier IVGross Power (kW) @ rpm 120 hp 89.5) @ 2,200Maximum Torque (Nm) 354 ft.-lbs. (480) @ 1,600Displacement (L) 220 cu.in. (3.6)
Hydraulic fan with swing-out cooler reduces fuel consumption, reduces noise levels, and provides improved service access.Automatic grid heater engine intake heating system provides superior cold-weather starting.Engine has conventional water/ethylene glycol liquid-cooled design.Engine servicing points are readily accessible.Dual element filter and pre cleaner are standard.
Hydraulics
When maximum hydraulic power is needed to run demanding attachments, the 4200V Skid Steer Loader is equipped with the tools to get the job done right.4000V Dump TruckHigh-Flow Hydraulics - Option (L/min) 40.8 gpm (154)
High system pressure delivers more hydraulic muscle to power demanding attachments and deliver superior lifting and breakout forces.Standard proportional auxiliary hydraulic control gives the operator the ability to adjust attachment speeds with infinitely adjustable flow control.Standard auxiliary detent allows the operator to set attachment for continuous operation.Standard Hydraglide ride control system allows the lift arm to float when transporting loads, minimizing loss of material, and increased operator comfort.Lift cylinders incorporate cushioning for smoother operation when lowering the lift arm.Pilot-controlled hydrostatic transmission with direct engine coupling provides high operating efficiency.
Lift Arm
The 4200V skid steer loader vertical-lift arm design was created for maximum reach, superior strength and optimal operator visibility.4000V Vertical LiftHeight to Hinge Pin - Fully Raised (mm) 143.6 (3647)Low-profile lift arm design provides outstanding forward and side visibility.Single-plane lift arm design features a heavy-duty timing link, upper-rear channel support and large diameter pivot pins, providing best-in-class vertical and lateral strength and rigidity, as well as exceptional rear visibility.Four-point support through dual bucket cylinders and two lift arm stop blocks on the front of the main frame evenly distribute digging forces.
Serviceability
We know ease of serviceability is very important to our customers. The model 4200V skid steer loader is sure to exceed their expectations.4000V Rear ServiceabilityLarge engine cover is hinged and positioned by gas-springs to assist lifting and holding in place, and allows for easy return to closed/operating position.Large rear door easily opens on hinges on right side, allowing full access for servicing and maintenance.Swing-out cooler provides improved access to engine bay area.Entire cabin structure tilts rearward with a gas strut/spring for easy internal service access.Drive chains and axle bearings are sealed systems that require no maintenance.Coded wiring takes the guesswork out of electrical system identification.Cabin filter is located on the top of the operator structure allowing it to pull more clean, fresh air and less debris.Rear side panels can be removed with the lift arm in the raised or lowered position.Hydraulic tank dipstick allows for simple and fast hydraulic fluid checks.Check engine coolant quickly through the handy sight gauge.
Specifications
Dimensions A. Overall Operating Height - Fully Raised (mm) 186.8 (4745)B. Height to Hinge Pin - Fully Raised (mm) 144 (3653)C. Overall Height to top of ROPS (mm) 82 (2083)D. Ground Clearance to Chassis (mm) 7.3 (185)E. Overall Length with Bucket (mm) 158 (4026)F. Overall Length without Bucket (mm) 121.5 (3086)G. Wheelbase (mm) 54.6 (1387)H. Dump Reach at Full Height (mm) 39.5 (1003)I. Rollback at Ground Level 31°J. Dump Angle 31°K. Overall Width (mm) 79.5 (2019)L. Bucket Width (mm) 84 (2134)M. Clearance Circle - Rear (mm) 70.5 (1791)N. Clearance Circle - Front w/o Bucket (mm) 50 (1290)O. Clearance Circle - Front w/Bucket (mm) 88.5 (2248)P. Seat to Ground Height (mm) 40.8 (1036)Q. Rollback at Full Height 100°R. Dump Height (mm) 114.8 (2916)S. Departure Angle 19°Standard Tire Size 14.00-17.5 HD
