Leveling, grading and earth moving made easy thanks to the performance of the vertical-lift 2700 V NXT:2 skid loader. This machine is your reference to ground engaging applications as well as to move material for landscaping, loading and transport your materials. Its multifunctional use allows it to serve well in several markets. For operator comfort, the 2700 V NXT:2 skid loader offers 360 degree visibility, intuitive controls, high precision motion and ergonomic driving position. Enjoy all its performance to facilitate your daily handling operations.

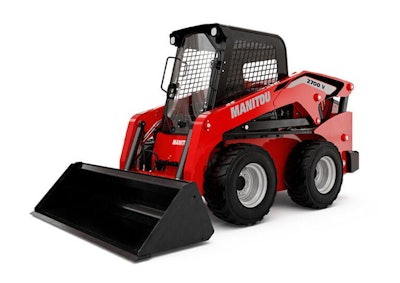

Skid Steer Loader
2700V NXT2
Height to Hinge Pin (mm): 130.3 (3310)Rated Operating Capacity (kg): 2,700 lbs. (1225)Net Power (kW): 70.7 hp (52.7) @ 2500
Performance
The 2700V NXT2 Skid Steer Loader is a product of superior innovation and well thought-out product development.2700V NXT2 GravelEmissions certified Tier IV engines combine power and efficiency.Self leveling lift action for better control of lifting loads.The chassis aids in superior weight distribution, which further enhances stability.Thick steel plating and heavy-duty pins and bushings make this loader stronger than any other machine in its class.A heavily constructed vertical-lift boom provides substantial forward reach at trailer loading and dumping heights.Electronic engine control and foot throttle allow operation at part throttle, reducing sound levels and fuel consumption.
Operator's Cab
The spacious operator's compartment on the 2700V NXT2 Skid Steer Loader is every operator's dream.Domed Cab DoorLevel II FOPS is standard equipment.Optional pressurized sealed cab enclosure with sound reduction material and rear-mounted air filter provide cleaner and quieter operating environment.Extra-large side screens combined with a low-profilelift arm design provide a wide field-of-view to the side work areas.Fully adjustable controls and an optional air-ride seat deliver outstanding comfort.Domed, wide-view glass door option reduces glare and provides optimal visibility to the lift arm, work tool and front work area. Large top, front window provides a clear view of the lift arm in its higher lift positions.
Controls
The 2700V NXT2 Skid Steer Loader is ergonomically designed to reduce operator fatigue and increase productivity.2700V CabinT-Bar and dual-hand controls now available.Optional electronic attachment control - 14-pin connector for easy operation of all attachments.Adjustable joystick handles provide for ease of operator control with minimal of effort, to reduce fatigue.New upper-left and upper-right instrument panels provide easy readout and switch access.Pilot joystick controls or pilot hand/foot controls provide the ultimate in operator comfort, ease and controllability.Infinitely adjustable proportional auxiliary hydraulics.Hydraloc system applies brakes whenever the operator raises restraint bar, leaves the operator's seat or switches off the ignition.
Engine
Emissions certified Tier IV engines combine power and efficiency on the 2700V NXT2 model.2700V_EngineMake YanmarModel 4TNV98CT-NMS Tier IVNet Power (kW) @ rpm 70.7 hp (52.7) @ 2500Maximum Torque (Nm) 217 ft.-lbs. (294) @ 1625Travel Speed - Max with 2-Speed Option (km/hr) 11.9 mph (19.2)
Engine consumes less fuel, making a positive impact on the bottom line.Automatic glow module engine intake heating system provides superior cold-weather starting.Engine has conventional water/ethylene glycol liquid-cooled design.Engine warranty, parts and service are handled through normal ship servicing in conjunction with Mustang parts and service support.HydraulicsWhen maximum hydraulic power is needed to run demanding attachments, the 2700V NXT2 Skid Steer Loader is equipped with the tools to get the job done right.2700V NXT2 Dump DirtAuxiliary Hydraulics - Standard (L/min) 23.5 gpm (89)High-Flow Hydraulics - Optional (L/min) 35 gpm (132)System Relief Pressure (bar) 3,200 psi (220.6)Reservoir Capacity (L) 10.5 gal. (40)
Standard proportional auxiliary hydraulic control gives the operator the ability to adjust attachment speeds with infinitely adjustable flow control.Standard auxiliary detent allows the operator to set attachment for continuous operation.Hydraglide system allows the lift arm to float when transporting loads, minimizing loss of material at faster transport speeds.Lift cylinders incorporate cushioning for smoother operation when lowering the lift arm.Pilot-controlled hydrostatic transmission with direct engine coupling provides high operating efficiency.
Lift Arm
The 2700V NXT2 Skid Steer Loader does not use the ordinary vertical-lift design. This loader's lift arm is designed with the operator in mind.2700V NXT2 Vertical LiftHeight to Hinge Pin - Fully Raised (mm) 130 (3310)Dump Reach at Full Height (mm) 32 (813)
Low-profile lift arm design provides outstanding forward and side visibility.Self-leveling lift action provides better control of lifting loads.Heavy-duty timing link design, upper-rear channel support and large diameter pivot pins provide extra strength and rigidity to the lift arm, and exceptional rear visibility.Four-point support through dual bucket cylinders and two lift arm stop blocks on the front of the main frame evenly distribute digging forces.
Serviceability
As with any Mustang loader, serviceability on the 2700V NXT2 Skid Loader is a snap.2700V NXT2 ServiceabilityLarge engine cover is hinged and positioned by gas-springs to assist lifting and holding in place, and allows for easy return to closed/operating position.Featured cab safety restraint bar for lifting ROPS/FOPS.Large rear door easily opens on hinges on right side, allowing full access for servicing and maintenance.Remote engine oil filter is on left side; easy access to hydraulic oil filter on right side.Entire ROPS/FOPS assembly tilts rearward with a hydraulic lift for easy internal service access.Drive chains and axle bearings are sealed systems that require no maintenance.Coded wiring takes the guesswork out of electrical system identification.
Dimensions A. Overall Operating Height - Fully Raised (mm) 167.4 (4252)B. Height to Hinge Pin - Fully Raised (mm) 130.3 (3310)C. Overall Height to top of ROPS (mm) 81 (2057)D. Ground Clearance to Chassis (mm) 8 (203)E. Overall Length with Bucket (mm) 148 (3759)F. Overall Length without Bucket (mm) 116.5 (2959)G. Wheelbase (mm) 49.5 (1257)H. Dump Reach at Full Height (mm) 32 (813)I. Rollback at Ground Level 29°J. Dump Angle 42°K. Overall Width (mm) 69.5 (1661)L. Bucket Width (mm) 70 (1778)M. Clearance Circle - Rear (mm) 66.5 (1689)N. Clearance Circle - Front w/o Bucket (mm) 56 (1422)O. Clearance Circle - Front w/Bucket (mm) 90 (2286)P. Seat to Ground Height (mm) 40 (1016)Q. Rollback at Full Height 94°R. Dump Height (mm) 100 (2540)S. Departure Angle 27°Standard Tire Size 12.00 x 16.5 HD
Engine
Make YanmarModel 4TNV98CT - Tier IVNet Power (kW) 70.7 hp (52.7)Gross Power (kW) 72 hp (53.7)RPM for Optimal Power 2500 rpmDisplacement (L) 202.6 cu.in. (3.3)Maximum Torque (Nm) @ rpm 217 ft.-lbs. (294) @ 1625
Hydraulics
Auxiliary Hydraulics - Standard (L/min) 23.5 gpm (89)High-Flow Hydraulics - Optional (L/min) 35 gpm (132)High Flow System Pressure (bar) 3,200 psi (220.6)Reservoir Capacity (L) 10.5 gal. (40)Capacities/Weight Rated Operating Capacity (kg) 2700 lbs. (1225)Tipping Load (kg) 5400 lbs. (2449)Fuel Tank (L) 24.5 gal. (72.7)Travel Speed - Maximum (km/hr) 7.4 mph (12)Operating Weight - Approximate (kg) 8,150 lbs. (3697)
