Facilitate the execution of your construction and agricultural operations work with the 2600 R skid loader. This radial-lift unit provides the perfect compactness as a valuable ally for excavating ground and loading or transporting various materials. Compatible with many attachments, it offers powerful features that let you perform multiple applications (drill, dig, carry excessive loads, sweep, lift ...). Enjoy improved performance of the 2600 R skid loader to increase productivity on uneven ground and tight confined spaces.

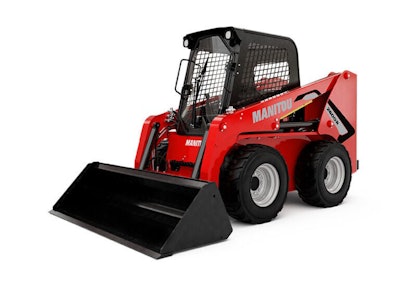

Skid Steer Loader
2600R
Height to Hinge Pin (mm): 123 (3124)Rated Operating Capacity (kg): 2,600 lbs. (1179)Net Power (kW): 70.7 hp (52.7) @ 2500
Performance
With over 40 years of skid loader manufacturing experience, Mustang has taken performance to the next level with the 2600R Skid Steer Loader.2600R Engage DirtNet Power (kW) 70.7 hp (52.7)Maximum Torque (Nm) 217 ft.-lbs. (294)Rated Operating Capacity (kg) 2600 lbs. (1179)High-Flow Auxiliary Hydraulics (L/min) 35 gpm (132.5)
Operator's Cab
The 2600R has spacious operator stations with plenty of adjustability and enhanced comfort features that users have come to expect from Mustang2600R CabinLarge Level II ROPS/FOPS is standard equipment.New side-folding restraint bar and adjustable armrests enhance operator safety and comfort.Adjustable control pods (joystick and hand/foot configurations) and an optional air-ride seat deliver outstanding comfort.Cab forward design enhances view to the bucket edge. Lowered rear towers improve visibility to the rear of the machine.Optional pressurized sealed cab enclosure, with sound reduction material and rear-mounted air filter, provides a cleaner, quieter, climate controlled operating environment.
Controls
Controls on the 2600R incorporates intuitive design, state-of-the-art technology and plenty of options to suit the preference of any operator.2600R Hand-Foot ControlsFour control options include T-Bar, Joystick, Dual-Hand, and Hand/Foot.Auxiliary controls are located on the control grip in all control configurations for easy access.Customizable integrated digital display provides coolant, fuel, battery, environmental and engine regeneration, and more information in real time.Adjustable joystick control pods provide ease of operator control with minimal effort, reducing fatigue.New upper-left and upper-right instrument panels provide easy readout and switch access.Hydraloc system applies brakes whenever the operator raises the restraint bar, leaves the operator's seat or switches off the ignition.
Engine
The 2600R is equipped with a top-of-the-line Yanmar Tier IV engine that meets emissions standards and provides the muscle needed to tackle demanding jobs with ease.
Make YanmarModel 4TNV98CT-NMS Tier IVNet Power (kW) @ rpm 70.7 hp (52.7) @ 2500Maximum Torque (Nm) @ rpm 217 ft.-lbs. (294) @ 1625Displacement (L) 202.6 cu.in. (3.3)
The DPF (Diesel Particulate Filter) system provides clean emissions without the need for additional fuel after-treatment additives.The DPF requires regeneration to maintain optimal running conditions. This occurs passively as the machine is operated, but also requires occasional manual regeneration by the operator.Regeneration is intuitively managed through the digital display and a clearly labeled rocker switch.
Hydraulics
The 2600R Skid Loader has an amped-up hydraulic system which incorporate intuitive design for precise controllability.2600R Dump TruckAuxiliary Hydraulics - Standard (L/min) 23.5 gpm (90)High-Flow Auxiliary Hydraulics - Option (L/min) 35 gpm (132.5)Reservoir Capacity (L) 8 gal. (30.3)
Impressive breakout forces deliver optimal digging and lifting performance.Improved cycle times increase productivity on the jobsite.Excellent ease of operation and proportionate flow adjustability are achieved with the auxiliary flow control rocker switch located on the control grip.HydraGlide option helps keep material in the bucket and provides a smoother ride by allowing the bucket to float when travelling over rough terrain.Hardened chrome cylinder rods resist pitting, rusting and scratching, extending the life of the cylinders.
Lift Arm
The 2600R is built with a robust, radial lift arm that incorporates performance and durability.
2600R Radial Lift Path
Radial lift path offers enhanced performance in excavating, grading and digging below grade applications.Selectable hydraulic self-leveling option keeps the bucket level throughout the lift cycle.Over the tire design provides wider access.
Serviceability
Excellent service access and quality components pair up to provide durable machines that are easy to maintain.
2600R Service
Oversized engine hood and rear door opens completely, exposing engine components and daily maintenance points.ROPS/FOPS tilts up with the aid of gas struts for access to hydraulic components.Drive chains and axle bearings are sealed systems that require no maintenance.All high-rotation pins have grease points for ease of maintenance.Features such as the remote oil drain and filter provide simple and easy maintenance access.
Dimensions
A. Overall Operating Height - Fully Raised (mm) 161 (4089)B. Height to Hinge Pin - Fully Raised (mm) 123 (3124)C. Overall Height to top of ROPS (mm) 81 (2057)D. Ground Clearance to Chassis (mm) 8 (203)E. Overall Length with 70 Bucket (mm) 143 (3632)F. Overall Length without Bucket (mm) 111.5 (2832)G. Wheelbase (mm) 49.5 (1257)H. Dump Reach at Full Height (mm) 27 (686)I. Rollback at Ground Level 28°J. Dump Angle 40°K. Overall Width (mm) 69.5 (1765)Overall Width - Narrow Offset Tire Option 65.5 (1664)L. Bucket Width (mm) 70 (1778)M. Clearance Circle - Rear (mm) 64 (1626)N. Clearance Circle - Front w/o Bucket (mm) 56 (1422)O. Clearance Circle - Front w/Bucket (mm) 90 (2286)P. Seat to Ground Height (mm) 40 (1016)Q. Rollback at Full Height 95°R. Dump Height (mm) 94 (2388)S. Departure Angle 25°Standard Tire Size 12.00 x 16.5 HD
