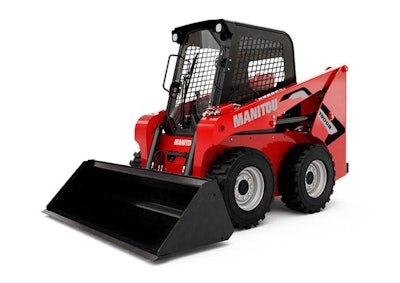

Take advantage of the performance of the 1900 R skid loader to effectively achieve your handling operations on your construction site or farm work. This very robust loader makes all-terrain maneuverability look easy on uneven, muddy, or rough environments. With a heavy lift capacity, the 1900 R skid loader is capable of transporting, lifting and moving your materials of all kinds, including the most cumbersome and bulky. Due its multifunction capability, this loader is a versatile reference solution for builders and farmers who must perform several operations every day.
Skid Steer Loader
1900RHeight to Hinge Pin (mm): 120.5 (3061)Rated Operating Capacity (kg): 1,900 lbs. (862)Net Power (kW): 68.4 hp (51) @ 2500
Performance
With over 40 years of skid loader manufacturing experience, Mustang has taken performance to the next level with the 1900R Skid Steer Loader.Net Power (kW) 68.4 hp (51)Maximum Torque (Nm) 173 ft.-lbs. (235)Rated Operating Capacity (kg) 1,900 lbs. (862)
Operator's Cab
The 1900R has a spacious operator station with plenty of adjustability and enhanced comfort features that users have come to expect from MustangLarge Level II ROPS/FOPS is standard equipment.New side-folding restraint bar and adjustable armrests enhance operator safety and comfort.Adjustable control pods (joystick and hand/foot configurations) and an optional air-ride seat deliver outstanding comfort.Cab forward design enhances view to the bucket edge. Lowered rear towers improve visibility to the rear of the machine.Optional pressurized sealed cab enclosure with sound reduction material and rear-mounted air filter provide a cleaner, quieter, climate controlled operating environment.
Controls
Controls on the 1900R incorporate intuitive design, state-of-the-art technology and plenty of options to suit the preference of any operator.Four control options include T-Bar, Joystick, Dual-Hand, and Hand/Foot.Auxiliary controls are located on the control grip in all control configurations for easy access.Customizable integrated digital display provides coolant, fuel, battery, environmental and engine regeneration, and more information in real time.Adjustable joystick control pods provide ease of operator control with minimal effort, reducing fatigue.New upper-left and upper-right instrument panels provide easy readout and switch access.Hydraloc system applies brakes whenever the operator raises the restraint bar, leaves the operator's seat or switches off the ignition.
Engine
The 1900R is equipped with a top-of-the-line Yanmar Tier IV engine that meets emissions standards and provides the muscle needed to tackle demanding jobs with ease.
Make YanmarModel 4TNV98C-NMS Tier IVNet Power (kW) @ rpm 68.4 hp (51) @ 2500Maximum Torque (Nm) @ rpm 173 ft.-lbs. (235) @ 1625Displacement (L) 202.6 cu.in. (3.3)
The DPF (Diesel Particulate Filter) system provides clean emissions without the need for additional fuel after-treatment additives.The DPF requires regeneration to maintain optimal running conditions. This occurs passively as the machine is operated, but also requires occasional manual regeneration by the operator.Regeneration is intuitively managed through the digital display and a clearly labeled rocker switch.
Hydraulics
The 1900R has amped-up hydraulic systems which incorporate intuitive design for precise controllability.Auxiliary Hydraulics - Standard (L/min) 18.5 gpm (70)High-Flow Auxiliary Hydraulics - Option (L/min) 31.5 gpm (119)Reservoir Capacity (L) 8 gal. (30.3)
Impressive breakout forces deliver optimal digging and lifting performance.Improved cycle times increase productivity on the jobsite.Excellent ease of operation and proportionate flow adjustability are achieved with the auxiliary flow control rocker switch located on the control grip.HydraGlide option helps keep material in the bucket and provides a smoother ride by allowing the bucket to float when travelling over rough terrain.Hardened chrome cylinder rods resist pitting, rusting and scratching, extending the life of the cylinders.
Lift Arm
The 1900R is built with a robust, radial lift arm that incorporates performance and durability.Radial lift path offers enhanced performance in excavating, grading and digging below grade applications.Selectable hydraulic self-leveling option keeps the bucket level throughout the lift cycle.Between the tire design keeps the machine length short and compact.
Serviceability
Excellent service access and quality components pair up to provide durable machines that are easy to maintain.Oversized engine hood and rear door opens completely, exposing engine components and daily maintenance points.ROPS/FOPS tilts up with the aid of gas struts for access to hydraulic components.Drive chains and axle bearings are sealed systems that require no maintenance.All high-rotation pins have grease points for ease of maintenance.Features such as the remote oil drain and filter provide simple and easy maintenance access.
Specifications
Dimensions A. Overall Operating Height - Fully Raised (mm) 158 (4013)B. Height to Hinge Pin - Fully Raised (mm) 120.5 (3061)C. Overall Height to top of ROPS (mm) 80 (2032)D. Ground Clearance to Chassis (mm) 6.5 (165)E. Overall Length with 66 Bucket (mm) 127 (3226)F. Overall Length without Bucket (mm) 94 (2388)G. Wheelbase (mm) 42 (1067)H. Dump Reach at Full Height (mm) 22.5 (572)I. Rollback at Ground Level 26°J. Dump Angle 42°K. Overall Width (mm) 66.5 (1689)Overall Width - Narrow Offset Tire Option 64.5 (1638)L. Bucket Width (mm) 66 (1676)M. Clearance Circle - Rear (mm) 58.5 (1486)N. Clearance Circle - Front w/o Bucket (mm) 44.5 (1130)O. Clearance Circle - Front w/Bucket (mm) 79 (2007)P. Seat to Ground Height (mm) 39 (991)Q. Rollback at Full Height 96°R. Dump Height (mm) 91 (2311)S. Departure Angle 25°Standard Tire Size 10.00 x 16.5 HD
Engine
Make YanmarModel 4TNV98C Tier IVGross Power (kW) @ 2500 rpm 69.3 (51.7)Net Power (kW) @ 2500 rpm 68.4 hp (51)Maximum Torque (Nm) @ 1625 rpm 173 ft.-lbs. (235)Displacement (L) 202.6 cu.in. (3.3)Hydraulics Auxiliary Hydraulics - Standard (L/min) 18.5 gpm (70)High-Flow Hydraulics - Optional (L/min) 31.5 gpm (119)Reservoir Capacity (L) 8 gal. (30.3)Electrical Battery (CCA) 12-volt (950)Starter (kW) 12-volt (3.0)Alternator 95-ampCapacities/Weight Rated Operating Capacity (kg) 1900 lbs. (862)With optional counterweight (kg) 2110 lbs. (957)Fuel Tank (L) 16.5 gal. (62.5)Travel Speed - Maximum (km/hr) 12.5 mph (20.1)Operating Weight - Approximate (kg) 6854 lbs. (3109)
