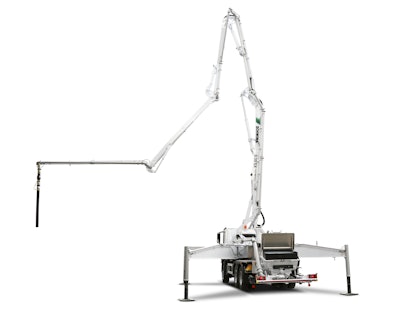

The S 38 SX with five-section boom offers added articulation on the working side of the boom for faster deployment and the ability to snake the end hose deep into decks.
- Boom provides 106 ft. 11 in. of horizontal and 122 ft. 4 in. of vertical reach
- Open-loop, twin-cylinder hydraulic pump offered in two sizes with output up to 216 cu. yds. per hour
- Super X-style front outriggers can be deployed on one-side only for setup
- Standard EASy system narrows footprint further and provides up to 180° of boom rotation on the pour side
- Available in a three-axle configuration with cabover truck or four-axle version with conventional truck to meet federal bridge laws
