Simpson Strong-Tie has introduced the SUBE bridging connector for cold-formed steel. The wall-stud bridging connector is designed to connect cold-rolled channel at the end of a wall or single-stud jamb condition or at the ends of panel walls, curtain walls or load-bearing conditions.

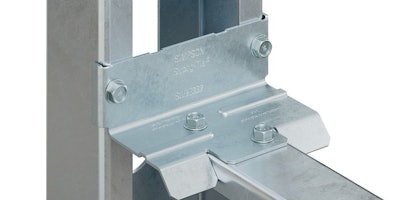

SUBE connects to the open face of the stud, installing with two screws to the stud lips, limiting drywall buildup. The u-channel attaches to the bottom of the connector with two additional screws. Because the connector’s outer flanges allow it to fit over the open side of the stud, no special tools or clamping is required. The design also eliminates sharp-point screw perforations, helping to create a safe work environment.
“By removing the potential for drywall bulge and onsite safety issues, contractors using the SUBE bridging connector can efficiently terminate end-of-wall bracing, saving both time and money,” said Clifton Melcher, group product manager for Simpson Strong-Tie.
SUBE is crafted from 16-gauge steel with a galvanized (G90) finish. The connector’s design promotes compliance with AISI S100 Sections C2.2.1 and C2.3 for axially and laterally loaded studs. Flexible design solutions accommodate web thicknesses of 33 mil (20 gauge) through 97 mil (12 gauge) and stud sizes of 3 5/8 and 6 in.
