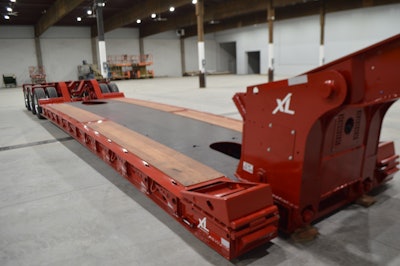

The XL Specialized Trailers Low-Profile Hydraulic Detachable Gooseneck (HDG) a 15-in. standard deck height to accommodate loads that may otherwise require a dropside trailer.
- Capacity of 110,000 lbs. in 12 ft.
- 13-ft. gooseneck with a swing clearance of 110 in. and a relief cut-out that provides added space between the truck and trailer
- Hydraulic neck detaches and re-attaches quickly using a power unit or a wet kit

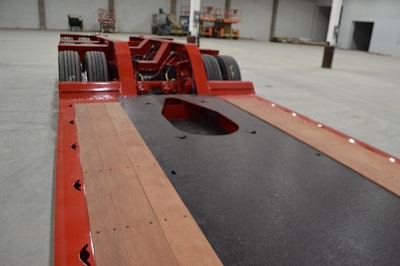

- Three-beam deck design offers an improved strength-to-weight ratio
Enhanced main deck features a bucket well in the rear and a toolbox at the front for storage space- Numerous tie-down points with seven pairs of bent d-rings along the outer beams, 12 chain drops per side on the outer rails and four chain drops around the toolbox
- Swing-out outriggers on 24-in. centers
- Wheel area’s drop bolster height of 37 in. allows for machinery to be loaded on the rear
- Third axle airlift can lift up when not needed
- Notched-out tail channel allows easy access to controls at the rear, and the air control valve is conveniently located in the bolster
- Frame prepped for a flip axle to allow a fourth axle when necessary
