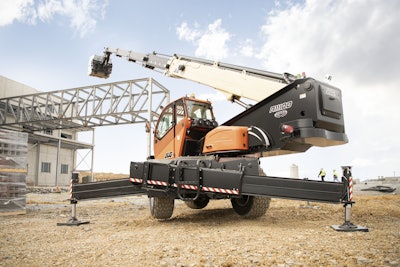

The JLG R11100 rotating telehandler delivers performance and stability during lifting or transporting applications in worksites. This machine has a capacity of 13,000 lbs. and a maximum reach height of 97 ft.
The telehandler offers 3-in-1 machine capabilities: a traditional telehandler, mobile elevating work platform (MEWP) and rough terrain crane.
The 360-degree continuous rotation of the upper frame on this JLG rotating telehandler model enables both horizontal and vertical lift-and-place capabilities, adding a new layer of functionality where it’s difficult to maneuver a traditional telehandler. Since this JLG rotating telehandler is often operated in place, it comes with front and rear scissor-style outriggers with automatic leveling jacks, which enable the operator to position the machine and then level the frame up to six degrees to compensate for uneven terrain.
The JLG R11100 can complete work done not only by traditional telehandlers but also by MEWPs when equipped with a platform attachment or rough terrain cranes when equipped with a truss boom and winch — potentially eliminating the need for cranes up to 97 ft.
Performance
The R11100 is equipped with 168-hp FPT diesel engine and features a two-speed, stop-to-shift hydrostatic transmission that delivers a stable ride over uneven terrain. Foam-filled tires come standard; air-filled tires are optional in two different treads.
The JLG R11100 rotating telehandler is available with 13 specialized attachments, allowing them to perform a wide range of work. Common attachments include work platforms, crane jibs and winches, standard and rotating carriages, forks, buckets, truss booms and coupler-mounted hooks.
Standard and continuous auxiliary hydraulics come on this model with optional dual-auxiliary hydraulics available to power multi-function attachments. A hydraulic coupler is also available when switching between attachments. The JLG R11100 rotating telehandler comes with an inching feature that allows the operator to run the boom at optimal speed without shifting the transmission into neutral. Tuned boom controls and soft stop slows the boom as it approaches the end of its stroke for lifting and placement of materials.
A remote boom control feature allows the operator to maneuver the boom from outside the cab when obstructions prevent clear visibility of the work area.
This rotating telehandler also has an intuitive operator interface and dual joystick proportional controls. The right joystick operates two functions — boom lift and lower and attachment tilt, forward and back. The left joystick controls boom extension and retraction, as well as turntable rotation.
Technology and Operation
This model is engineered with three JLG technologies: Automatic Attachment Recognition, Load Management Information System (LMIS) and Load Stability Indicator (LSI).
The automatic attachment recognition system recognizes the attachment at the end of the boom, alerts the operator for confirmation and then displays the appropriate load capacity chart. LMIS indicates whether the load is compliant and prevents operation that violates the load chart’s boundaries. LSI limits the rotating telehandler’s functionality when a load nears maximum capacity.
JLG’s rotating telehandler come with enclosed cabs, air conditioning and a secondary heating unit. They have adjustable suspension seats, integrated armrests and an adjustable steering column.
Safety
A reversing camera and lighting package come as standard equipment to aid operator visibility. Optional work lights can be added for low-light situations.
A white noise backup alarm system can be ordered to promote worker awareness. This system emits an audible alarm signal when the telehandler is traveling in reverse to alert those working in and around the machine.
