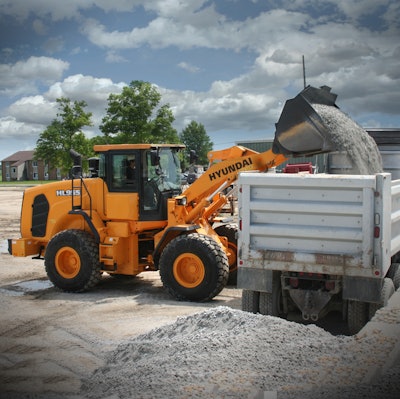

Hyundai's Tier 4 Final HL900 wheel loaders deliver as much as 5% greater productivity and 10% lower fuel consumption compared to the previous 9A series loaders.
- Models available: HL940, HL955, HL960, HL970 and HL980; additional models including the HL935, Tool Master and Extended Reach configurations also available
- HL940XT extended reach version features redesigned longer lift arms that provide approximately 14 in. of additional dump height and reach
- HL960 heavy-duty axle configuration available for use in severe conditions such as landfills, scrapyards and forestry operations
- Cummins engines in HL935, HL940, HL955 and HL960; Scania engines in HL970 and HL980
- HL955 and larger models feature optional front locking differentials
- Bucket features deeper profile, curved side plates and larger spill guard
- Eco Pedal automatically detects foot pressure and adjusts power modes to job demand
- Programmable auto-engine shutdown (available with smart key option)
- Eco Gauge provides operator with a visual reference of fuel efficiency, total fuel consumption and average fuel data
- Automatice weighing system
- Speed limit setting is programmable through touchscreen
- Standard four-speed automatic transmission; optional five-speed automatic transmission with lockup clutch
- 7-in. interactive touchscreen monitor
- Cab up to 10% larger than previous models; in-cab sound levels reduced by 3 dB
- Tilt-back, wide-open engine cowling design
- Vertically stacked cooling design
- Available AAMV (All-Around View Monitoring) system uses four cameras to provide a 360° surround virtual operating view of the working environment
- Optional Smart Start ignition system for password or Bluetooth key-enabled machine start
- Optional electro-hydraulic fingertip control on select models
