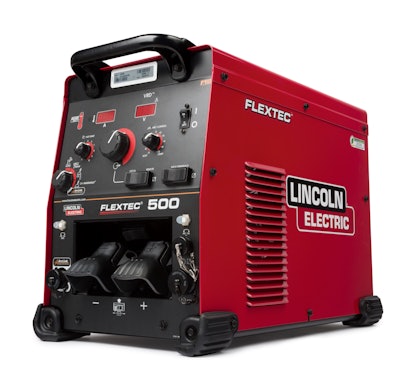

The 125-lb. Flextec 500 has an output range of 5 to 500 amps, and is rated at 450 amps, 38 volts at 100% duty cycle or 500 amps, 40 volts at 60% duty cycle.
- Flexible input power capability allows operation on 380- through 600-volt, three-phase input power
- Delivers premium, multi-process arc characteristics for stick, DC TIG, MIG, flux-cored and arc gouging
- Compatible with a variety of wire feeder types, including analog, digital and across the arc
- Streamlined operator control panel reduces setup time, simplifying process selection
- Fully encapsulated, environmentally protected electronics
- Internal components designed and tested to run cool for long life in high-temperature environments
- Available Flextec 500P delivers up to 500 amps of inverter-based pulse welding for applications where precise heat input control is critical
