Spyder 514TS Portable Screening Plant

The Spyder 514TS is a patented track-mounted reverse screening plant designed for primary or secondary screening of rock, sand and gravel, soils, and other materials

April 7, 2017
Screen Machine Industries, LLC.
Spyder 514ts Screen 17gwqwi2mnsms Cuf
7e1f58ba

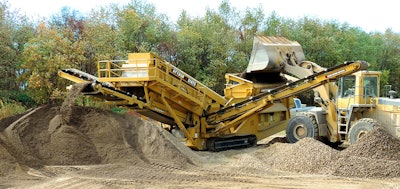

The Spyder 514TS is a patented track-mounted reverse screening plant designed for primary or secondary screening of rock, sand and gravel, soils, and other materials.

  • Can be used as a stand-alone screen or in conjunction with a crusher
  • 5- by 14-ft. double-deck two bearing screen capable of producing three finished products simultaneously
  • 5- by 12-ft. bottom deck
  • Adjustable screen angle
  • Yanmar Tier 4 Flex 84-hp diesel engine
  • Remtron wireless remote control operation
  • 42-in.-wide fines conveyor with 13-ft. 10-in. discharge height
  • Side discharge belt angles: 18 to 24 degrees
  • 24-in. overs conveyor with  16-ft. 6-in. discharge height
  • 24-in. mids conveyor with 16-ft. 6-in. discharge height
  • Standard Grizzly hopper feeder
  • 8 cu. yd. hopper
  • Low feed height of 9 ft. 4 in. wthout Grizzly
  • Heavy-duty tracked undercarriage
  • 15.7-in. shoe width for low ground pressure
  • Heavy-duty unibody frame chassis
  • Patented Smooth Start Technology
  • Independent hydraulics
