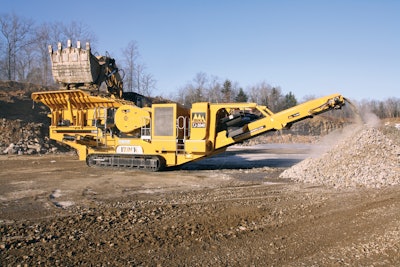

The TJ-3046 Track Jaw Crusher by IROCK Crushers is a high performance primary jaw crushing plant designed for medium-scale operators in quarrying, demolition, recycling and mining applications.
- 13 cu.yd. feeder and includes a grizzly pre-screening grid
- The feeder drive features a load control system to ensure continuous, uninterrupted crushing
- Inlet opening of 46 in. by 30 in. and is equipped with a hydraulic wedge adjustment to give operators total control of product size down to 2 in.
- High swing jaw generates an aggressive crushing action and accelerates movement of material into the crushing chamber
- 48 in. crusher discharge conveyor can stockpile up to 11 ft., 6 in.
- Operating weight: 110,250 lbs
