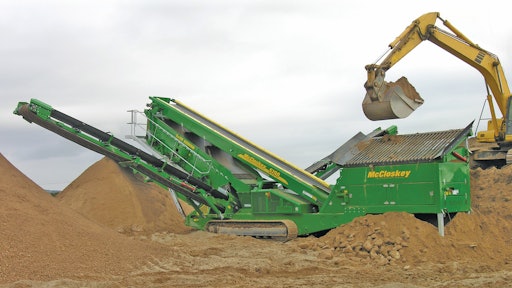

McCloskey S190 Screening Plant
- The track-mounted S190 vibratory flat deck screening system features a 5' x 20' "high-energy" screening box with five screen angle settings from 20 degree to 30 degree.
- Vibration stroke adjustable from 6 to 10mm
- Shaft speeds adjustable from 950 to 1,130 rpm
- 190-sq.-ft. total effective screening area
- Standard 10.5-cu.-yd. taper-out hopper remote-controlled tipping grid or optional 13.5-cu.-yd. hopper
- Available with an optional roll-in bogie or as a tri-axle wheeled model to facilitate highway travel
