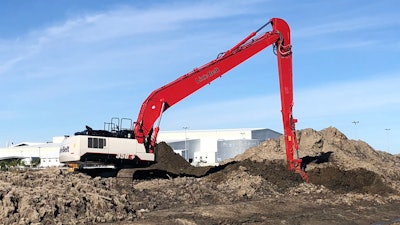

Link-Belt 350 X4 Long Front Excavator

The Link-Belt 350 X4 long front excavator features 13 different rpm settings for precise control of heavy lifting, fine grading or leveling work

Link Belt 350 X4 Lf 01
Lbx Link Belt Excavators

The Link-Belt 350 X4 long front excavator features 13 different rpm settings for precise control of heavy lifting, fine grading or leveling work. The base machine offers up to 8% faster cycle times compared to its predecessor.

  • Factory-designed and built long front attachment matched to factory-tuned hydraulics
  • Tier 4 Final Isuzu engine
  • Three engine modes: Speed Priority (SP mode), Heavy (H mode) and Applied Power (A mode)
  • Two electronically controlled Kawasaki variable-displacement axial-piston pumps and one Kawasaki gear pump
  • 7-in. LCD color monitor
  • New proprietary control valve with 30% larger hydraulic passage area
  • Size of arm, boom and auxiliary spools increased
  • ROPS/FOPS-certified cab
  • Standard rear-view camera
  • Six-year subscription to RemoteCARE GPS-enabled telematics system included
  • SAE net horsepower: 268 hp at 1,900 rpm
  • Operating weight: 88,200 lb.
  • Max digging depth: 46 ft. 3 in.
  • Max reach at ground level: 60 ft. 10 in.
  • Arm force: 16,640 lbf.
  • Bucket digging force: 29,000 lbf.
  • Bucket capacity: 0.65 to 1.40 cu. yd.
  • Max travel speed: 3.5 mph
