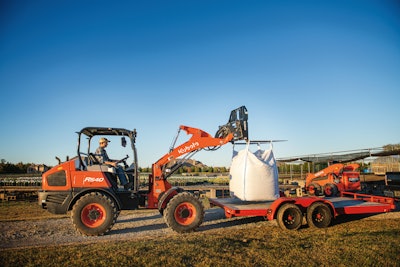

New models feature increased lift performance and panoramic views.
Kubota
![C6f50e97](https://img.forconstructionpros.com/files/base/acbm/fcp/image/2024/05/c6f50e97.png?auto=format%2Ccompress&q=70&w=250)

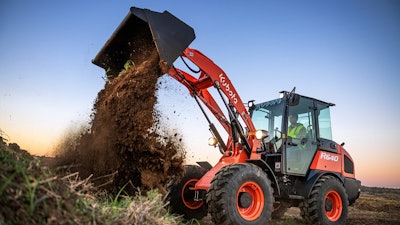

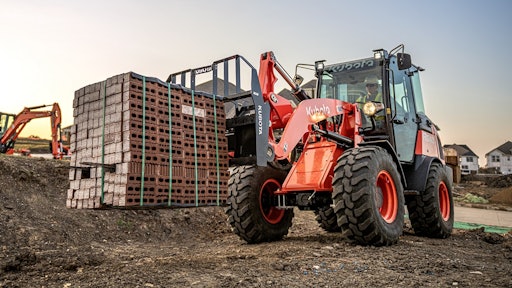

The updated R540 and R640 models are available in both canopy and cab models and feature improved visibility, enhanced operator comfort and increased performance over the previous R30 Series models.
- R640 boasts an operating weight of 11,563 lbs., 64-hp Tier 4 Final engine and a maximum breakout force of 9,869 lbs. and 8,161 lbs. of lifting capacity
- R540 has a 10,285-lb. operating weight, a 54-hp Tier 4 Final engine and a maximum breakout force of 8,183 lbs. and 6,767 lbs. of lifting capacity
- High-visibility cabin with 360° panoramic view via an enlarged front window and full-sized, all-glass right-side window
Arms redesigned for better visibility to enable connecting attachments with the hydraulic coupler without leaving the cab- Delta-shaped loader arms run parallel and become narrow at the cab and widen at the end of the arms for enhanced visibility when the bucket is at full lift height
- Spacious cab includes a reconfigured console and switch layout for more foot and leg room, and controls positioned just a finger touch away
- Standard multi-function control lever controls forward, neutral and reverse, the differential lock and the auxiliary port switch, enabling all major loader functions and operational functions to be accomplished with one hand
- Standard LED working lights
