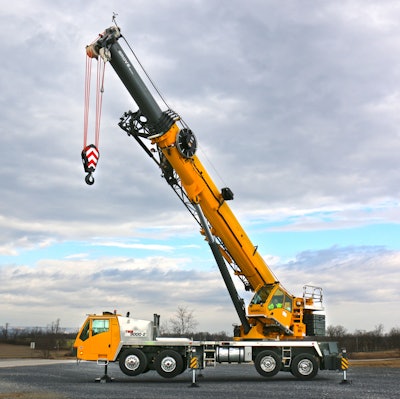

The 115-ton-capacity TMS9000-2 four-axle truck crane is approximately 800 lbs. lighter than its predecessor, the TMS9000E, enabling a wider range of flexibility in carrying counterweight, cribbing and other items.
- 169.3-ft. six-section MEGAFORM boom utilizes the Twin-Lock pinning system
- Hoist offers a maximum line pull of 23,500 lbs. and a 960-ft. cable capacity
- Manual or hydraulic swingaways plus additional inserts provide further reach options
- Crane Control System offers six predefined boom sequences to maximize crane utilization and includes a Boom Configurator Mode
- Outrigger system provides four configurations (0%, 33%, 66% and 100%) and measures only 23 ft. at full span
- Compact chassis measures 8.5 ft. wide and 43.8 ft. long
- 450-hp Cummins ISX12 engine and manual or an automated manual transmission
- Air-conditioned cab includes ergonomic controls and a series of cameras to assist operators while driving the crane or lifting
