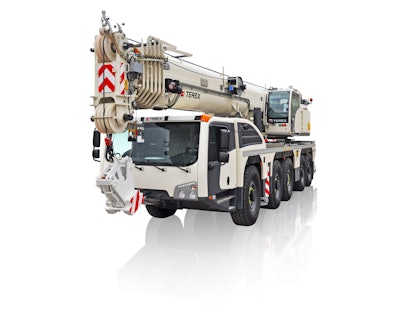

The 180-ton-capacity Explorer 5600 five-axle all-terrain crane offers a boom with a short 3.9-ft. front overhang, while its optional boom-off solution or dolly help in meeting the most stringent road regulations.
- 223-ft. main boom and maximum 312-ft. system length with a maximum load moment of 480 mt
- Lifting capacity of 38.5 tons while telescoping
- 22,076- lbf. hoist with 0.83-in. rope and 10.9-ton cable pull
- Automatic counterweight rigging system enables the crane to be ready to work quickly
- 41-ft. carrier length enables maneuverability in urban areas and congested construction sites
- All-axle steering delivers tight cornering capabilities and the ability to crab steer
- Single, 405/265-kW (road travel/operation) Euromot IV/Tier 4 Final-compliant diesel engine operates both the driveline and upper structure
- Outrigger base of 26.7' x 24.6
- Standard IC-1 control system offers efficient and intuitive touchscreen operation
