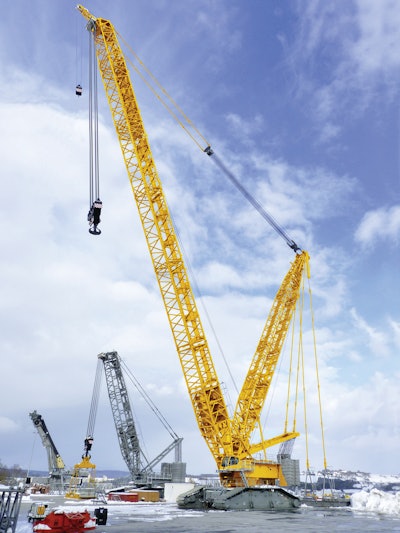

The LR 11000 crawler crane supplements the range between Liebherr's LR 1750 and LR 11350. The standard components comprising the S main boom and W luffing jib enables the crane to achieve various boom systems.
- Radius of derrick ballast is infinitely adjustable and can be extended to larger radii with fixed lattice guide
- Undercarriage features a 360-degree platform with railings which can be accessed from two sides
- Compact track width of 30.18 ft.
- Standard four-way drive unit
- Liebherr V8 680-hp diesel engine
- Max lifting capacity: 2,205,000 lbs. at 36 ft.
- Max load moment: 15,012tm
- Main boom: 79 to 512 ft.
- Lattice jib: 59 to 374 ft.
- Derrick mast: 98 to 118 ft.
- Superstructure/central ballast: 551,000 lbs./198,500 lbs.
- Derrick ballast: 992,000 lbs.
- Total counterweight: 1,741,650 lbs.
- Travel speed: 0 to 0.85 mph
