The TRS10, TRS14, TRS18 and TRS23 models for tracked excavators seamlessly integrate to the machine, contribute up to 13% more productivity and are designed to be easy to operate.

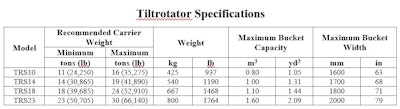

- Available for machines from 11 to 30 metric tons (24,250 to 66,140 lbs.)
- 360° bidirectional rotation and 40° left and right tilt allow work from many different angles with less machine repositioning
- Machine controls allow for simultaneous tilt, rotation and machine movement
Pin-on or S-type coupler top interfaces or S-type coupler bottom interfaces- Optional grapple module allows operator to move materials out of the way, such as large rocks or pipe, without switching attachments
- Heavy-duty bolted joint secures the housing, rotator and coupler as a unit
- Worm gear drive submersed in oil to ensure positive lubrication in all operating conditions
- Pins, shafts and bushings feature heavy duty construction
- Hydraulic rotator motor protected inside the cast rotator housing
- Short profile helps maintain consistent breakout forces
- Double-acting tilt cylinders with built-in load holding valves keep attachment secure in the event of a pressure loss
