Simpson Strong-Tie's RCA-C rigid connector angle is an ideal solution for attaching cold-formed steel (CFS) stud framing to concrete supports.
Features
- 2 in. by 2 in. legs for plenty of room to make attachments to structure and stud framing
- Multiple screw pattern options for different load rating options on stud framing
- Prepunched holes for attachment of screws to stud framing and concrete
- A range of load applications—the connector can be used either to form a heavy-duty shear and tension connector or to form a light-duty moment connection

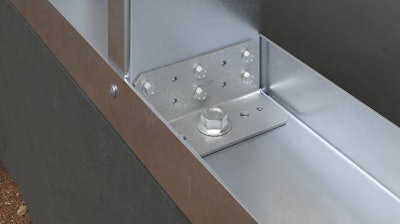

Designed to save installers time and reduce the cost of drilling connector holes at the jobsite, the RCA-C provides the most anchor options available, including holes for a 1/2-in. diameter anchor screw or bolt, or for two 1/4-in. diameter concrete screws positioned to allow a variety of fastening options.
The Simpson Strong-Tie family of rigid connector angles include general-purpose clip angles designed for a wide range of cold-formed steel construction applications. With prepunched holes for fastener attachment, these L-shaped clips save time and labor on the job and can be used for miscellaneous header/sill connections to jamb studs, jamb stud reinforcement at track, u-channel bridging, stud blocking, bypass curtain-wall framing, joist connections and other applications.
Fabricated from G90 galvanized steel for enhanced resistance to corrosion, the RCA-C is ideal for fastening stud framing to concrete supports where versatility and productivity are required on the jobsite.
Prepunched holes on the RCA-C anchor leg provide options for attachment to concrete or masonry, which can be achieved with 1/2-in. Titen HD or Strong-Bolt anchors or 1/4-in. Titen HD or Titen Turbo anchors.
