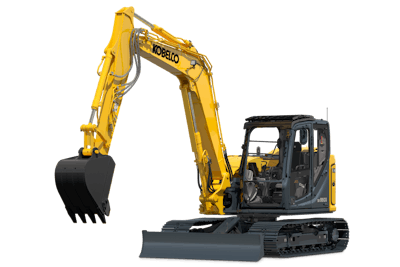

SK85CS-7
Engine Power - 70 hp (52.3 kW)
Operating Weight - 20,100 lbs (9,120 kg)
The KOBELCO SK85CS-7 has the power, fuel economy and features you need to tackle the toughest jobs in tight spaces. In all KOBELCO SR Series machines, you'll find the exclusive iNDr Cooling System that reduces dust while delivering ultra-quiet operation, as well as multiple mode settings that allow you to dial in the perfect balance of performance and fuel economy. Plus, premier operator comforts mean it's easier to stay focused on the task at hand.
Overall Length 22' 2 (6,750 mm) Overall Height (to top of boom) 8' 5 (2,570 mm) Overall Width 8' (2,450 mm) Ground Clearance of Rear End 2' 4 (720 mm) Ground Clearance 14 (355 mm) Tail Swing Radius 5' 5 (1,650 mm) Distance From Center of Swing To Rear End 5' 5 (1,650 mm) Tumbler Distance 7' 3 (2,210 mm) Track Gauge 6' 1 (1,850 mm) Shoe Width 1' 11 (600 mm) Overall Width of Upperstructure 7' 7 (2,300 mm)
PERFORMANCE
Travel Speed 3.1 mph (5 kph) / 1.7 mph (2.7 kph) Drawbar Pulling Force 17,200 lbf (77 kN)
WEIGHT
Operating Weight 20,100 lbs (9,120 kg)
ENGINE
Model Yanmar 4 TNV 98 CT Power Output 72 hp (53.7 kW) 70 hp (52.3 kW) Max. Torque 216 lbf (293 Nm) Displacement 202.5 in³ (3.318 ltr) Fuel Tank 31.7 gallons (US) (120 ltr)
HYDRAULIC SYSTEM
Pump 2 Variable axial piston + Gear Dozer Blade Blade Height: 18 (460 mm) Blade Width: 8' (2,450 mm) Max. Raise Height: 20 (500 mm) Dig Depth: 20 (500 mm)
Max. Digging Reach 24' 7 (7,500 mm) Max. Digging Reach At Ground Level 24' 1 (7,340 mm) Max. Digging Depth 14' 7 (4,440 mm) Max. Digging Height 23' 9 (7,280 mm) Max. Dumping Clearance 17' (5,180 mm) Max. Vertical Wall Digging Depth 12' 4 (3,750 mm) Min. Swing Radius 9' 2 (2,800 mm) Digging Depth For 8 Feet Flat Bottom 13' 5 (4,120 mm)
Bucket Digging Force 15,900 lbf (70.9 kN) Arm Crowding Force 7,580 lbf (33.7 kN)
