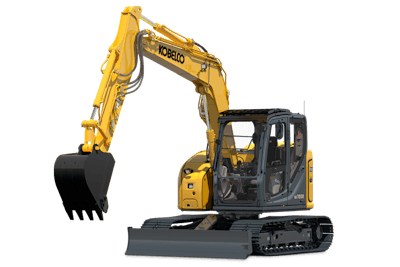

SK75SR-7
Engine Power - 70 hp (52.3 kW)
Operating Weight - 18,700 lbs (8,490 kg)
At KOBELCO, we invented short rear swing excavators, so it only makes sense we'd stay ahead of the competition with the SK75SR-7. This model has the power, fuel economy and features you need to tackle jobs in tight spaces. In all KOBELCO SR Series machines, you'll find the exclusive iNDr Cooling System that reduces dust while delivering ultra-quiet operation, as well as multiple mode settings that allow you to dial in the perfect balance of performance and fuel economy. Plus, premier operator comforts mean it's easier to stay focused on the task at hand.
Overall Length 20' 10 (6,360 mm) Overall Height (to top of boom) 8' 5 (2,570 mm) Overall Width 8' (2,450 mm) Ground Clearance of Rear End 2' 4 (720 mm) Ground Clearance 14 (355 mm) Tail Swing Radius 4' 6 (1,380 mm)
PERFORMANCE
Travel Speed 3.1 mph (5 kph) / 1.7 mph (2.7 kph) Drawbar Pulling Force 17,300 lbf (77 kN)
WEIGHT
Operating Weight 18,700 lbs (8,490 kg)
ENGINE
Model Yanmar 4 TNV 98 CT Power Output 72 hp (53.7 kW) 70 hp (52.3 kW) Max. Torque 216 lbf (293 Nm) Displacement 202.5 in³ (3.318 ltr) Fuel Tank 31.7 gallons (US) (120 ltr)
HYDRAULIC SYSTEM
Pump 2 Variable axial piston + Gear Dozer Blade Blade Height: 18 (460 mm) Blade Width: 8' (2,450 mm) Max. Raise Height: 14 (360 mm) Dig Depth: 10 (250 mm)
Max. Digging Reach 22' 7 (6,880 mm) Max. Digging Reach At Ground Level 22' 2 (6,760 mm) Max. Digging Depth 15' (4,580 mm) Max. Digging Height 25' 5 (7,750 mm) Max. Dumping Clearance 18' 7 (5,670 mm) Max. Vertical Wall Digging Depth 13' 7 (4,140 mm) Min. Swing Radius 7' (2,130 mm) Digging Depth For 8 Feet Flat Bottom 14' 2 (4,310 mm)
Bucket Digging Force 15,900 lbf (70.9 kN) Arm Crowding Force 7,900 lbf (35.2 kN)
