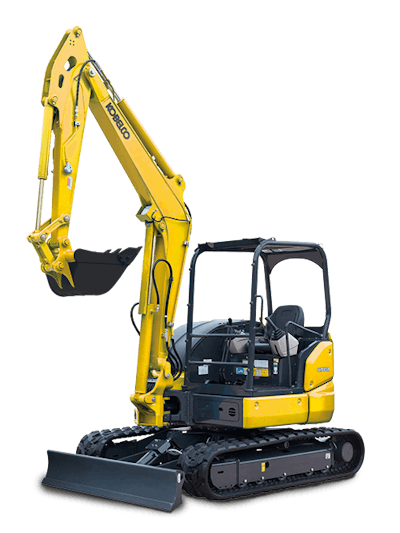

SK55SRX-6E
Engine Power - 37.4 hp (27.9 kW)
Operating Weight - 11,860 lbs (5,380 kg)
The SK55SRX-6E packs more digging power and practical performance features into a small package while maintaining a short tail swing. The new Energy Conservation Mode saves even more fuel, and KOBELCO's proprietary iNDr Cooling System ensures quiet operation, protection from dust and easy maintenance.
Overall Height (to top of boom) 8' 4 (2,530 mm)Overall Width 6' 5 (1,960 mm)Ground Clearance of Rear End 2' (605 mm)Tail Swing Radius 4' 2 (1,270 mm)Distance From Center of Swing To Rear End 4' 2 (1,270 mm)Tumbler Distance 6' 7 (2,000 mm)Track Gauge 5' 1 (1,560 mm)Shoe Width 1' 3 (400 mm)Overall Width of Upperstructure 6' 4 (1,940 mm)
PERFORMANCE
Travel Speed 2.5 mph (4 kph) / 1.4 mph (2.2 kph)Drawbar Pulling Force 12,342 lbf (54.9 kN)
WEIGHT
Operating Weight 11,860 lbs (5,380 kg)
ENGINE
Model Yanmar 4 TNV 88 C - PYBPower Output 39 hp (29.1 kW)37.4 hp (27.9 kW)Max. Torque 97.3 lbf (131.8 Nm)Displacement 133.6 in³ (2.189 ltr)
Max. Digging Reach 20' 6 (6,240 mm)Max. Digging Reach At Ground Level 20' (6,100 mm)Max. Digging Depth 12' 10 (3,900 mm)Max. Digging Height 19' 5 (5,930 mm)Max. Dumping Clearance 14' 3 (4,350 mm)Max. Vertical Wall Digging Depth 10' 4 (3,140 mm)Min. Swing Radius 7' 5 (2,250 mm)Digging Depth For 8 Feet Flat Bottom 11' 5 (3,480 mm)
Bucket Digging Force 11,128 lbf (49.5 kN)Arm Crowding Force 5,300 lbf (23.7 kN)
